ROYAL WHARF PIER, LONDON

Icon for Civil Engineering

Civil Engineering

Icon for River & Coastal

River & Coastal

Icon for London & South East England

London & South East England

Client

Ballymore / Oxley

Value

£5,700,000

Employers Representative

Beckett Rankine

Construction of a new Royal Wharf ferry pier for the Thames Clipper Service

Overall, the Royal Wharf scheme includes private and affordable residential units, retail, leisure, and community facilities, the Royal Wharf Pier, and a school.

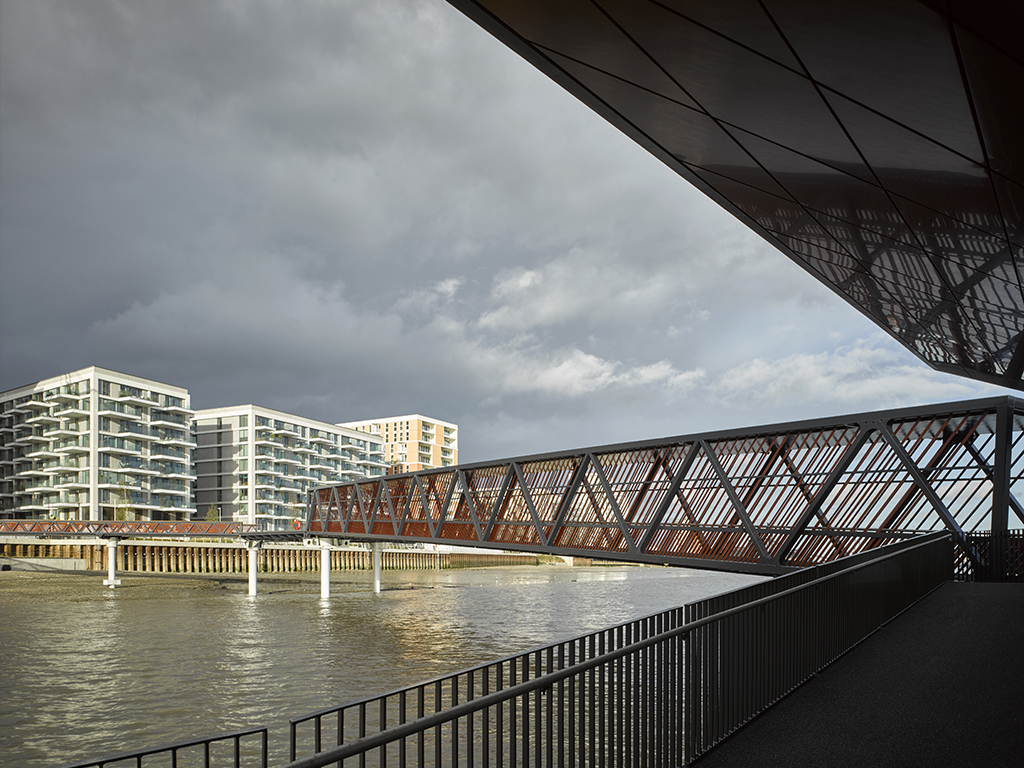

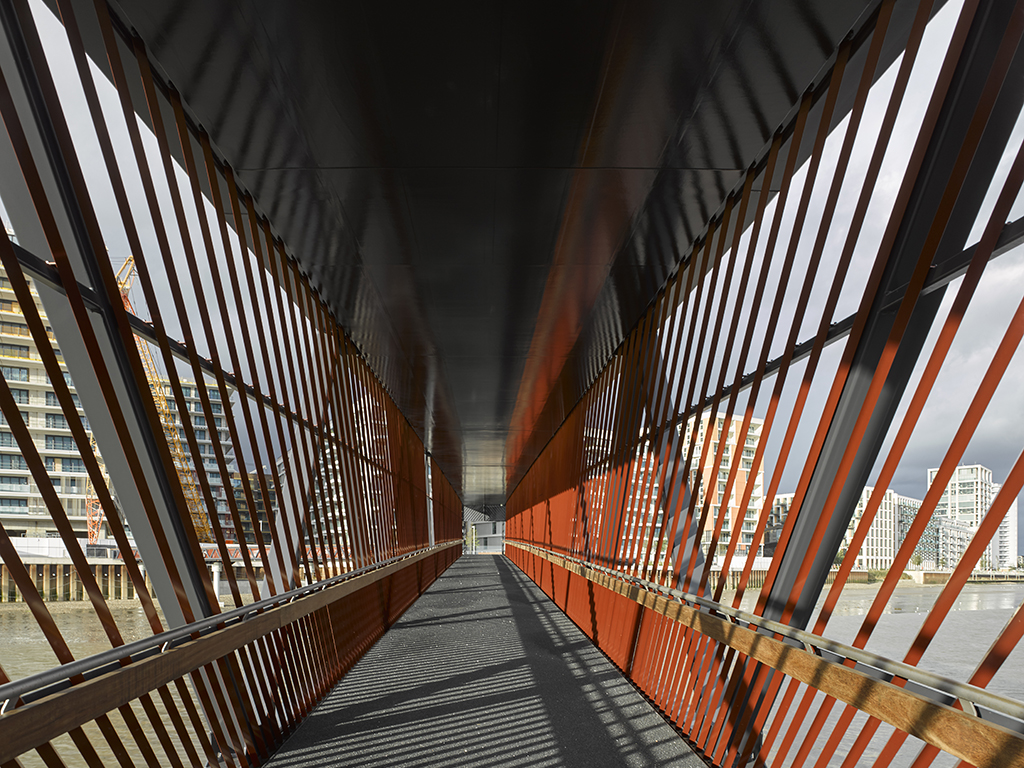

Works involved demolishing the existing island jetty, which was previously used as a fuelling jetty with a buried oil line. Once removed, we replaced it with three 15-meter-long fixed bridge spans on piled supports to provide access from the riverside walkway to the viewing platform.

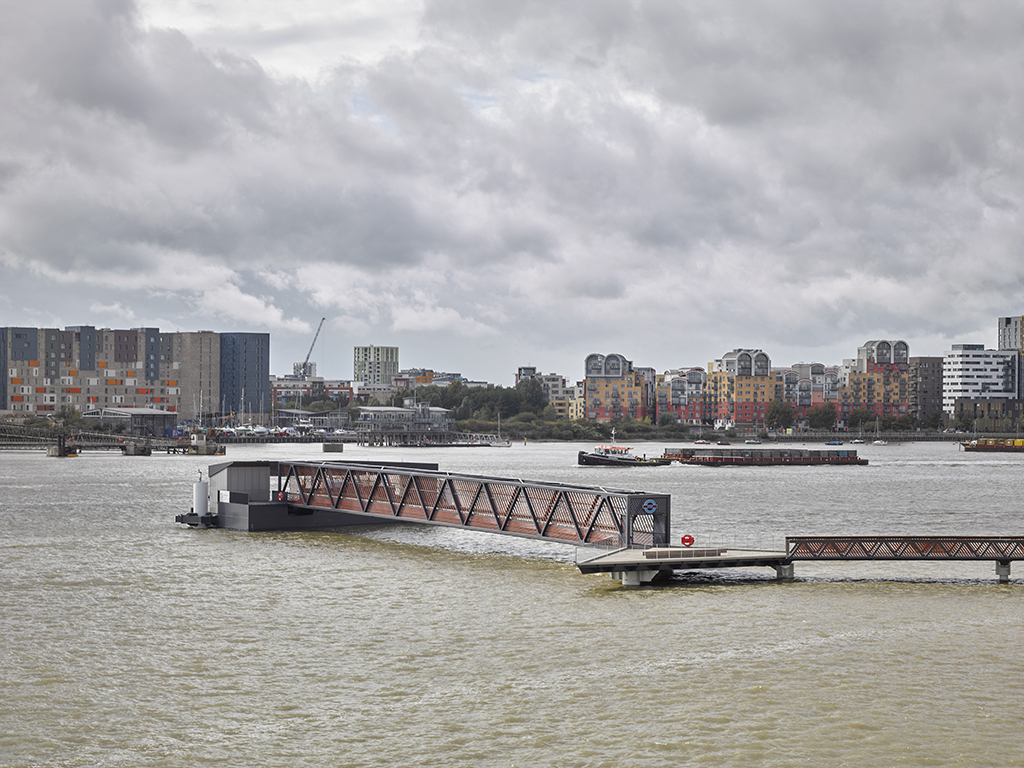

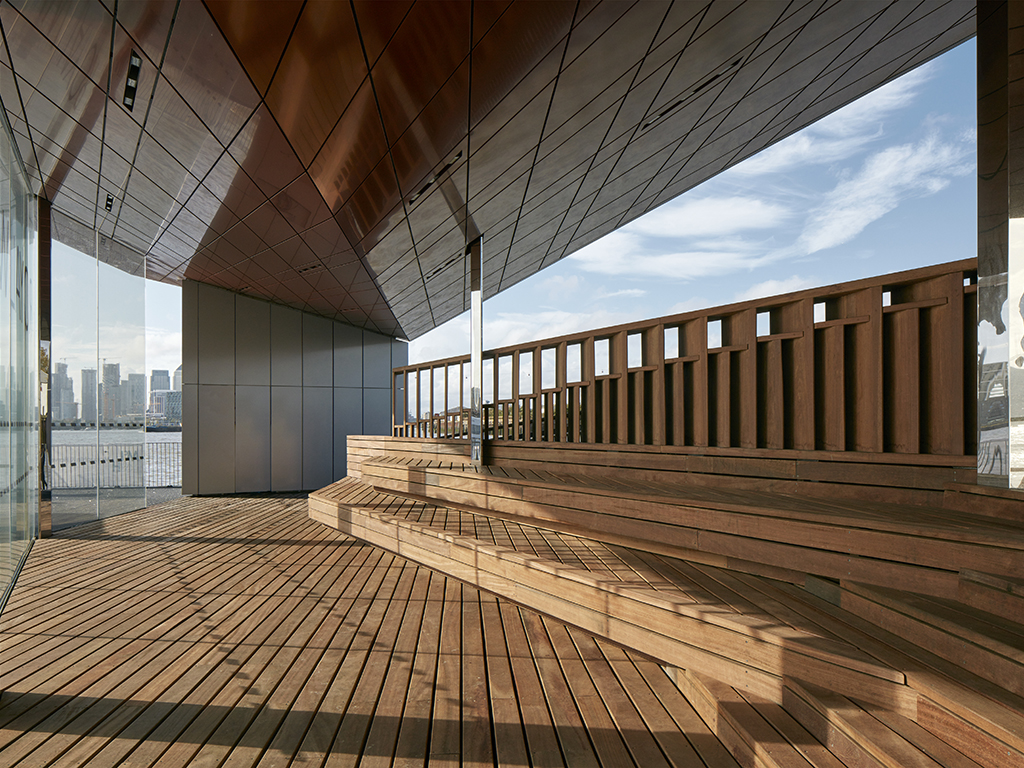

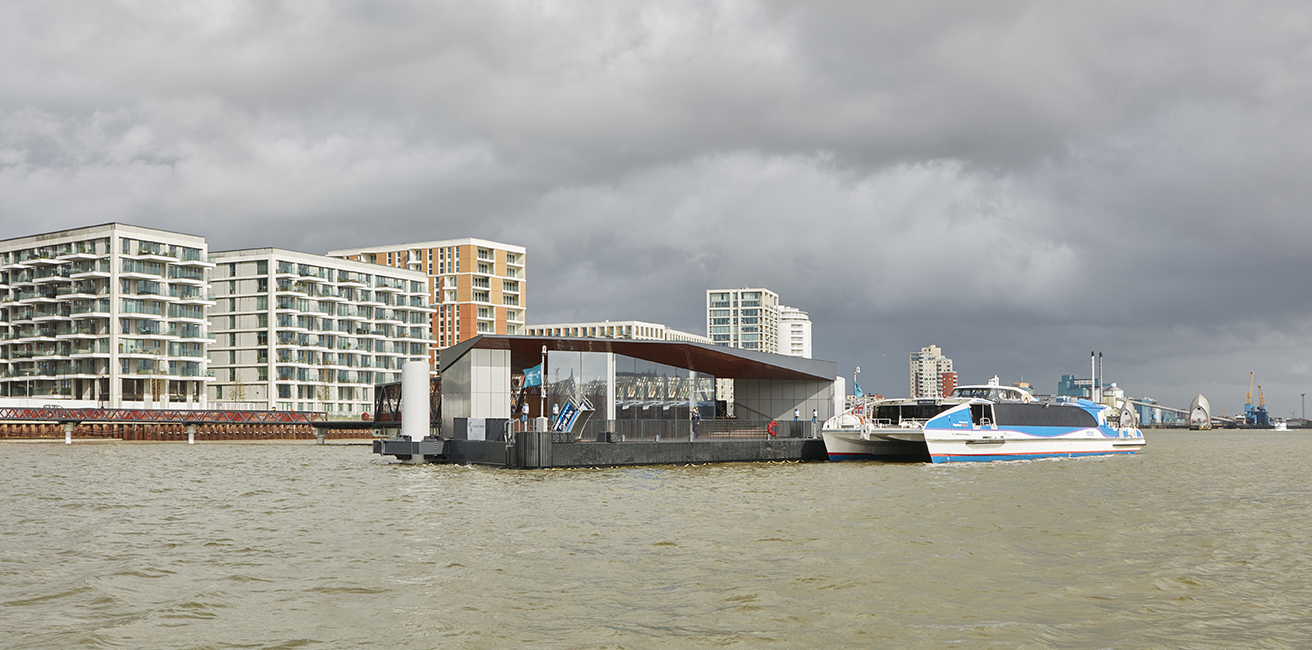

The project also included a 65m long canting brow which caters to a tide range of 6.5 m, and a 30 m long floating pontoon which provides a berthing facility for the Thames Clipper river ferries. Additionally, the floating pontoon also provides a covered waiting area for customers using the service, which includes Ekki timber cladding finished to a high architectural standard.

Ravestien designed and fabricated the pontoon, canting brow, viewing platform, and link bridges at their facility in Holland.

Once completed, the link bridges and the viewing platform were loaded onto a transport crane barge for the North Sea crossing and further transit up the Thames. We then positioned the barge alongside the structure and lifted each element into position, where it was fixed in place.

Our works complied with the environmental conditions outlined by the Port of London Authority and Marine Licence consents. We also coordinated our pontoon works alongside key stakeholders, including third-party contractors who were undertaking a separate contract for the reconstruction of the site’s river wall and the ongoing construction of residential units, landside.

3

15m long fixed bridge spans on piled supports

1830

sqft viewing platform
